Decoration Platform Suspended Gondola Scaffolding

Factory Direct Decoration Platform Suspended Gondola Scaffolding. Superior quality, affordable prices. Contact us for all your scaffolding needs.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
zlp200/zlp500/zlp630/zlp800/zlp1000
Driven Type
Rack&Pinion
Running Mode
Moving
Feature
Explosion-Proof
Certification
CE, ISO 9001
Usage
Electrical Work Gondola Equipment
Surface Treatment
Painted, Hot Galvanized
Matrial
Steel, Aluminum Alloy
Rated Load(Kg)
200, 500, 630, 800, 1000
Voltage
220-440V, 50-60Hz,3phase
Safety Lock
Ls 30, 20-30kn.M
Operate System
Electrical, Auto, Manual
Max. Lifting Height
300 M
Length of Platform
From 1m to 10m
Wire Rope Dia.
8.3/8.6/9.1/9.3/10.2mm
Transport Package
Paper Box and Wooden Cases or as Your Requirements
Specification
Steel, Aluminum Alloy
Trademark
XINGDOU
Origin
China
HS Code
8428909090
Production Capacity
5000sets/Year

Product Description

    ZLP Series Suspended Platform/Construction Cradle/Suspended Cradle/Window Cleaning Gondola

Product Description

construction cleaning cradle is throught the top of suspension mechanism on the roof of buildings, hanging with wire rope along building facades, the motor assembly with two side of gondola and drive the load which inside the gondola up and down. work gondola have a stromg adaptability to construction site, it is always to be used for wall cleaning, maintenance, decoration, windows or other kind glasses cleaning, installation, maintenance or high buildings surface painting works.

We pay all our attention for the Construction work cradle, working construction cradle, hanging construction cradle, construction cradle design and manufacturing. Wall construction cradle for high buildings and windows cleaning A good tools and make work efficiently.

Technical parameters of construction cleaning cradle:

model zlp500 zlp630 zlp800 zlp1000
appearance painting/hot galvanized
fabrication material steel/aluminum alloy
rated load 500kg 630kg 800kg 1000kg
lifting speed 9-11m/min 9-11m/min 8-10m/min 8-10m/min
motor power 2x1.5kw 2x1.5kw 2x1.8kw 2x2.2kw
brake torque 16km 16km 16km 16km
steel rope angle adjusting range 3°-8° 3°-8° 3°-8° 3°-8°
distance between two steel rope ≤100mm ≤100m ≤100m ≤100m
counter weight(optional) 25kgx30pcs 25kgx36pcs 25kgx40pcs 25kgx44pcs
diameter of steel rope 8.3mm 8.3mm 9.1mm 10.2mm
max lifting height(m) 300m 300m 300m 300m
motor rotation speed 1420r/min 1420r/min 1420r/min 1420r/min
voltage(3phases)(optional) 220v/380v/415v/440v    50hz/60hz to be OEM


Products Show

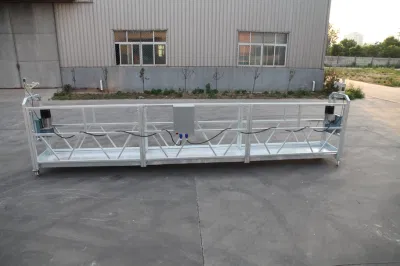

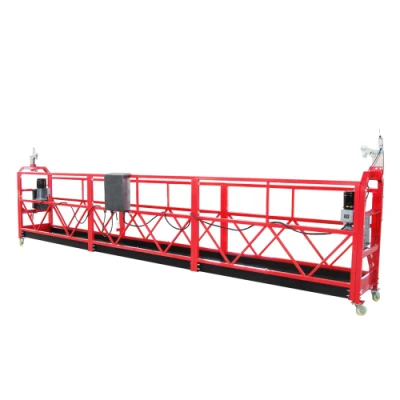

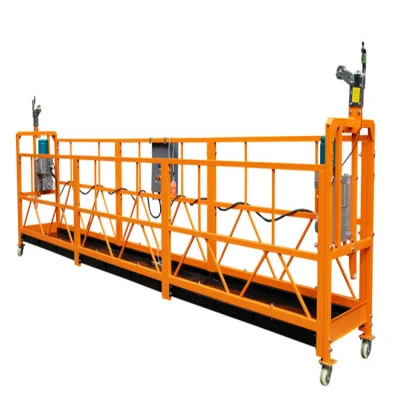

Decoration Platform Suspended Gondola Scaffolding

Main Parts of construction cleaning cradle:

1. construction cradle(basket): Steel or Aluminum Alloy (painted or hot galvanized) 6. Steel wire rope: 8.3mm ,8.6mm or 9.1mm
2. Suspension Mechanism: Steel (painted or hot galvanized) 7. Safety rope: 18mm,20mm
3. Electric hoists:LTD6.3 or LTD8 8. Electric cable: 3*2.5+2*1.5
4. Safety Lock: LST30 9. Counterweights: Cement , cement with steel cover & Iron counterweight
5. Electric control box: Along with hoists 10. Spare parts

Packing and Shipping

Packages Details of construction cleaning cradle for high buildings and windows cleaning

package platform counter weight hoist & safety lock control panel & other smallparts
film pallet wooden case carton box

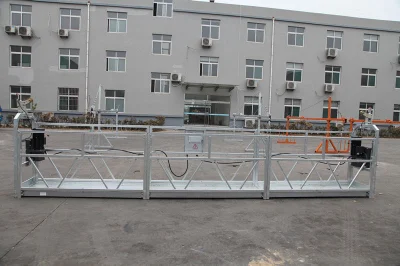

Decoration Platform Suspended Gondola Scaffolding Decoration Platform Suspended Gondola Scaffolding
Our Company
The suspended construction cradle can be customized according to customers'requirements(drawing, specifications and so on).
As a professional manufacturer,are always keep product Quality come first, main product including the suspended platform,construction hoist,tower crane,Auto Parking System and so on construction equipment,Weclome to visit our factory!

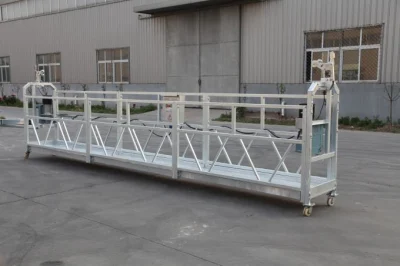

Decoration Platform Suspended Gondola Scaffolding

After-sale services
1.Quality Assurance:
   Good quality is assured by advanced manufacturing technology.and all products will be checked by our quality-control manager.
2.Excellent Package:
   We provide standard,strong,protective package for our products to prevent is from outer damage.
3.Quickly Response:
   Detailed information,specific model and price of price of products will be provided quickly after receiving your inquiry.

Welcome to visit our factory!
