Basic Info.
Supporting Mode
Projecting Scaffolding
Lapping Form
Single Row Scaffolding
Erection Position
Internal Scaffolding
Move Method
Horizontal mobile Scaffolding
Scaffolding Part Type
Scaffolding Props
Construction Properties
Building Scaffold
Thickness
1.8-3.0mm
Surface Treatment
Powder Coated, Electric Galvanized, Color Painted
Plate
Flower, Square, U Head
Adjustable Length
1600-4000mm
Transport Package
Bundled + Pallets
Specification
40/48/50/60mm
Trademark
GY STEEL
Origin
Tianjin, China
HS Code
7308400000
Production Capacity
30000
Product Description
![Steel Prop Manufacture Shuttering Frame Scaffolding for Building House Shoring Prop Galvanized](http://img6.grofrom.com/www.hayoscaffoldingco.com/226f3j00gJDWEZmyZpzU/Steel-Prop-Manufacture-Shuttering-Frame-Scaffolding-for-Building-House-Shoring-Prop-Galvanized.webp)
![Steel Prop Manufacture Shuttering Frame Scaffolding for Building House Shoring Prop Galvanized](http://img6.grofrom.com/www.hayoscaffoldingco.com/226f3j00zmDhtdwqCruG/Steel-Prop-Manufacture-Shuttering-Frame-Scaffolding-for-Building-House-Shoring-Prop-Galvanized.webp)
![Steel Prop Manufacture Shuttering Frame Scaffolding for Building House Shoring Prop Galvanized](http://img6.grofrom.com/www.hayoscaffoldingco.com/226f3j00DJHVaUdBaguY/Steel-Prop-Manufacture-Shuttering-Frame-Scaffolding-for-Building-House-Shoring-Prop-Galvanized.webp)
Middle East (Heavy duty) Type Prop | |||||||||
Number | Adjustable Height | Inner Tube OD | Outer Tube OD | Thickness | Surface Treatment | Plate | Pic | ||
(mm) | (mm) | (mm) | (mm) | ||||||
ME1832 | 1800-3200 | 48 | 60 | 1.8/2.0/2.2/2.5/3.0 | Powder Coated/ Electric galvanized/Painted | Flower/Square/U head | ![]() | ||
ME2035 | 2000-3500 | 48 | 60 | 1.8/2.0/2.2/2.5/3.0 | |||||
ME2240 | 2200-4000 | 48 | 60 | 1.8/2.0/2.2/2.5/3.0 | |||||
ME2850 | 2800-5000 | 48 | 60 | 1.8/2.0/2.2/2.5/3.0 |
Spanish (Light duty) Type Prop | |||||||||
Number | Adjustable Height | Inner Tube OD | Outer Tube OD | Thickness | Surface Treatment | Plate | Pic | ||
(mm) | (mm) | (mm) | (mm) | ||||||
IT1629 | 1600-2900 | 48 | 56 | 1.6/1.8/2.0/2.2 | Powder Coated/Electric galvanized/Painted | Flower/Square/U head | ![]() | ||
IT1832 | 1800-3200 | 48 | 56 | 1.6/1.8/2.0/2.2 | |||||
IT2036 | 2000-3600 | 48 | 56 | 1.6/1.8/2.0/2.2 | |||||
IT2240 | 2200-4000 | 48 | 56 | 1.6/1.8/2.0/2.2 |
Spanish (Light duty) Type Prop | |||||||||
Number | Adjustable Height | Inner Tube OD | Outer Tube OD | Thickness | Surface Treatment | Plate | Pic | ||
(mm) | (mm) | (mm) | (mm) | ||||||
ST1629 | 1600-2900 | 40 | 48 | 1.6/1.8/2.0/2.2 | Powder Coated/Electric galvanized/Painted | Flower/Square/U head | ![]() | ||
ST1832 | 1800-3200 | 40 | 48 | 1.6/1.8/2.0/2.2 | |||||
ST2035 | 2000-3500 | 40 | 48 | 1.6/1.8/2.0/2.2 | |||||
ST2240 | 2200-4000 | 40 | 48 | 1.6/1.8/2.0/2.2 |
![Steel Prop Manufacture Shuttering Frame Scaffolding for Building House Shoring Prop Galvanized](http://img6.grofrom.com/www.hayoscaffoldingco.com/226f3j00LwHiEJAdfrgR/Steel-Prop-Manufacture-Shuttering-Frame-Scaffolding-for-Building-House-Shoring-Prop-Galvanized.webp)
![Steel Prop Manufacture Shuttering Frame Scaffolding for Building House Shoring Prop Galvanized](http://img6.grofrom.com/www.hayoscaffoldingco.com/226f3j00WmDiEGdCYpzf/Steel-Prop-Manufacture-Shuttering-Frame-Scaffolding-for-Building-House-Shoring-Prop-Galvanized.webp)
![Steel Prop Manufacture Shuttering Frame Scaffolding for Building House Shoring Prop Galvanized](http://img6.grofrom.com/www.hayoscaffoldingco.com/226f3j00iJHWaPmIapgG/Steel-Prop-Manufacture-Shuttering-Frame-Scaffolding-for-Building-House-Shoring-Prop-Galvanized.webp)
![Steel Prop Manufacture Shuttering Frame Scaffolding for Building House Shoring Prop Galvanized](http://img6.grofrom.com/www.hayoscaffoldingco.com/226f3j00WAIlakdhHgzR/Steel-Prop-Manufacture-Shuttering-Frame-Scaffolding-for-Building-House-Shoring-Prop-Galvanized.webp)
![Steel Prop Manufacture Shuttering Frame Scaffolding for Building House Shoring Prop Galvanized](http://img6.grofrom.com/www.hayoscaffoldingco.com/226f3j00WmPlQZABZugR/Steel-Prop-Manufacture-Shuttering-Frame-Scaffolding-for-Building-House-Shoring-Prop-Galvanized.webp)

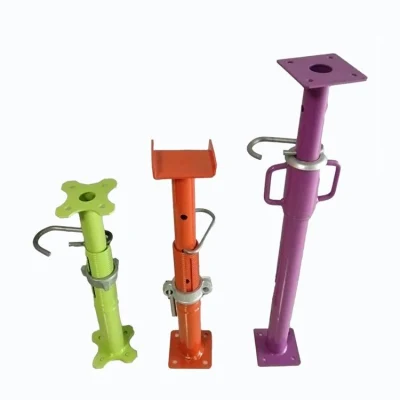

(1)Steel prop is mainly made of the bottom plate, outer tube, inner tube, swivel nut, cotter pin, upper plate, and the accessories scaffolding tripod, head jack, the structure is simple and flexible.
(2)The structure of the steel prop is simple, so it is easy to assemble and disassemble.
(3)Steel prop is adjustable because the inner tube can extend and shrink in the outer tube, so it can be adjusted according to the required height.
(4) The steel prop can be reused. Even though it is out of work, the material can also be recycled.
(5)Steel prop can be adjusted according to the different heights of the constructions. steel prop, scaffolding steel props, steel props for construction, adjustable steel props, steel shoring prop scaffolding, adjustable steel props,steel shoring prop scaffolding, formwork steel props.
![Steel Prop Manufacture Shuttering Frame Scaffolding for Building House Shoring Prop Galvanized](http://img6.grofrom.com/www.hayoscaffoldingco.com/226f3j00VdLlEAJPCruf/Steel-Prop-Manufacture-Shuttering-Frame-Scaffolding-for-Building-House-Shoring-Prop-Galvanized.webp)
![Steel Prop Manufacture Shuttering Frame Scaffolding for Building House Shoring Prop Galvanized](http://img6.grofrom.com/www.hayoscaffoldingco.com/226f3j00qdPlTYwavzrR/Steel-Prop-Manufacture-Shuttering-Frame-Scaffolding-for-Building-House-Shoring-Prop-Galvanized.webp)
![Steel Prop Manufacture Shuttering Frame Scaffolding for Building House Shoring Prop Galvanized](http://img6.grofrom.com/www.hayoscaffoldingco.com/226f3j00odDWELAsbrgf/Steel-Prop-Manufacture-Shuttering-Frame-Scaffolding-for-Building-House-Shoring-Prop-Galvanized.webp)
![Steel Prop Manufacture Shuttering Frame Scaffolding for Building House Shoring Prop Galvanized](http://img6.grofrom.com/www.hayoscaffoldingco.com/226f3j00omPltqAdAzrf/Steel-Prop-Manufacture-Shuttering-Frame-Scaffolding-for-Building-House-Shoring-Prop-Galvanized.webp)
1. Good welding between the tube and plate. Keep strong during using.
2. Thickness 1.6-3.0mm welding steel pipe, good threads can use long time.
3. Good surface treatment, we have painted, powder coated, electro galvanized and hot dipped galvanized.
![Steel Prop Manufacture Shuttering Frame Scaffolding for Building House Shoring Prop Galvanized](http://img6.grofrom.com/www.hayoscaffoldingco.com/226f3j00bJDWESAkZzrR/Steel-Prop-Manufacture-Shuttering-Frame-Scaffolding-for-Building-House-Shoring-Prop-Galvanized.webp)
![Steel Prop Manufacture Shuttering Frame Scaffolding for Building House Shoring Prop Galvanized](http://img6.grofrom.com/www.hayoscaffoldingco.com/226f3j00bJIlEmwgCpuY/Steel-Prop-Manufacture-Shuttering-Frame-Scaffolding-for-Building-House-Shoring-Prop-Galvanized.webp)
![Steel Prop Manufacture Shuttering Frame Scaffolding for Building House Shoring Prop Galvanized](http://img6.grofrom.com/www.hayoscaffoldingco.com/226f3j00vAHlEfwdCzrU/Steel-Prop-Manufacture-Shuttering-Frame-Scaffolding-for-Building-House-Shoring-Prop-Galvanized.webp)
![Steel Prop Manufacture Shuttering Frame Scaffolding for Building House Shoring Prop Galvanized](http://img6.grofrom.com/www.hayoscaffoldingco.com/226f3j00MwHVELdfaugR/Steel-Prop-Manufacture-Shuttering-Frame-Scaffolding-for-Building-House-Shoring-Prop-Galvanized.webp)
