Adjustable Steel Shoring Prop Scaffolding Acrow Jack Props

Looking for Adjustable Steel Shoring Prop Scaffolding Acrow Jack Props? Look no further! We are a factory producing high-quality props for all your construction needs.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Packaging & Shipping
  • Related Products
  • Our Services
  • Company Information
Overview

Basic Info.

Model NO.
TR1184
Usage
Steel Formwork
Application
Concrete Construction
Adjustable Size
1.8-3.2m, 2.0-3.6m,2.2-4.0m, etc.
Wall Thickness
1.8mm,2.0mm,2.5mm,3.0mm,etc.
Accessories
Prop Sleeve, Prop Nut, G Pin, Base Plate, Tripod,
Transport Package
Pallet
Specification
48/56mm; 48/60mm; 60/76mm
Trademark
TRICO
Origin
Hebei, China
HS Code
73084000
Production Capacity
500tons/Month

Product Description

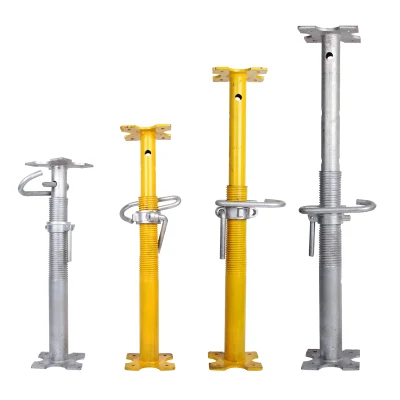

   Adjustable Steel Shoring Prop Scaffolding Acrow Jack Props

1. A complete set of steel prop consists of Top Plate, Base Plate,Inner pipe,outer pipe, Prop
Sleeve, Prop Nut, Support Pin or G Pin, Tripod and Fork Head.

2.The steel prop is easy to assemble and disassemble due to its simple structure.

3. Can be adjusted to any length within its range;it can be reused.

4. Widely used in proping system such as construction,plants and bridge etc.

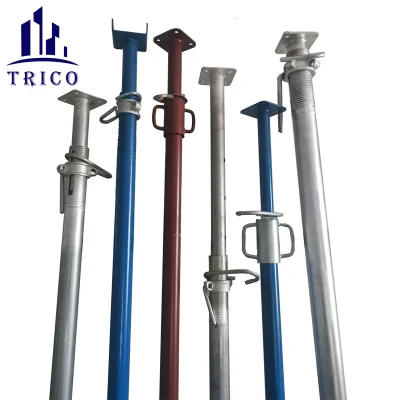

Heavy Duty Steel Prop
Photo Min Height  Max Height Inner Tube Outer Tube

Adjustable Steel Shoring Prop Scaffolding Acrow Jack Props
1.8m 3.2m 48mm*2.0mm 60mm*2.0mm
2.0m 4.0m 48mm*2.0mm 60mm*2.0mm
1.8m 3.6m 48mm*3.0mm 60mm*3.0mm
2.2m 4.0m 48mm*3.0mm 60mm*3.0mm
Various Sizes are available as demand

Light Duty Steel Prop
Photo Min Height  Max Height Inner Tube Outer Tube
Adjustable Steel Shoring Prop Scaffolding Acrow Jack Props 1.7m 3.0m 40mm*2.0mm 48mm*2.0mm
1.8m 3.5m 48mm*2.0mm 56mm*2.0mm
2.0m 3.5m 48mm*2.0mm 56mm*2.0mm
2.2m 4.0m 48mm*2.0mm 56mm*2.0mm
Various Sizes are available as demand
Adjustable Steel Shoring Prop Scaffolding Acrow Jack Props
Adjustable Steel Shoring Prop Scaffolding Acrow Jack Props Adjustable Steel Shoring Prop Scaffolding Acrow Jack Props

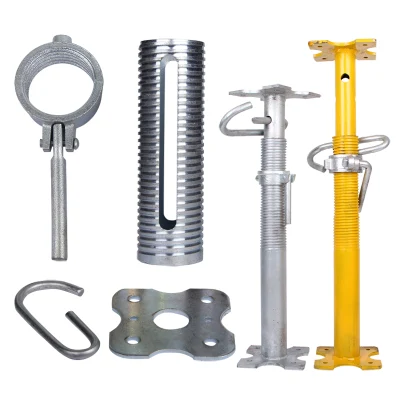

A variety of steel prop fittings available as follows:

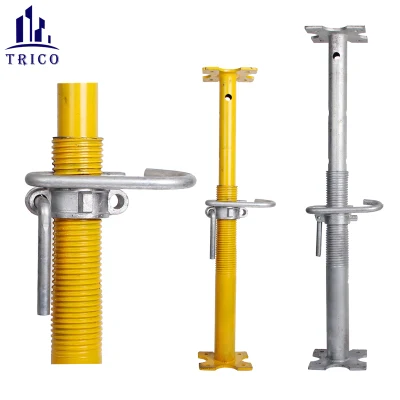

Adjustable Prop Sleeve



Adjustable Steel Shoring Prop Scaffolding Acrow Jack Props



Diameter

60mm/ 76mm

Material

Q235

 Length

195-400mm

Surface Finish

Galvanized or black

Thickness

2.5-4.0mm

Color

Gold, Silver or Black

Hole Size

14*150mm

15*160mm

Application

Prop adjusting

Thread

6.35mm

Related Items

Prop nut,

Base plate,

G pin,etc.

Thread Type

Threading

or Rolling

Packing

Bags

or Pallets

Adjustable Prop Sleeve Handle Nut
Adjustable Steel Shoring Prop Scaffolding Acrow Jack Props Diameter 60mm, 76mm Material Ductile Iron Casting
Weight 250g, 560g, 780g and etc. Surface Finish Galvanized or as Nature
Handle with or not Color Silver, Gold or Black
Thread 6.35mm Packing bags or pallet
Thread Type Rolling or Casting Related Products

Prop Sleeve,

Prop Support Pin and etc.

OEM SIZE AND FEATURE IS AVAILABLE
Adjustable Shoring Prop Support Pin
Type Photo Diameter Material Surface Finish
G Pin Adjustable Steel Shoring Prop Scaffolding Acrow Jack Props 11mm, 12mm, 14mm, 16mm

Q235 or

45# Steel

Galvanied or as Nature
Chain Pin Adjustable Steel Shoring Prop Scaffolding Acrow Jack Props 11mm, 12mm
Wire Pin
Other Supprt Parts
Item Detail Size Surface Finish

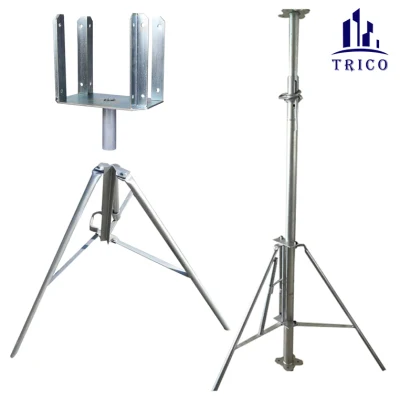

Fork Head Adjustable Steel Shoring Prop Scaffolding Acrow Jack Props 2.2kgs, 2.5kgs Galvanized
Tripod Adjustable Steel Shoring Prop Scaffolding Acrow Jack Props

5.5kgs

Galvanized or Painted

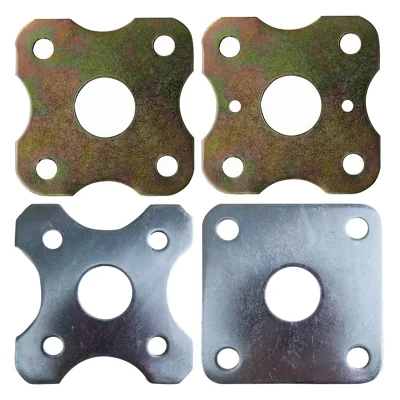

Base Plate Adjustable Steel Shoring Prop Scaffolding Acrow Jack Props

120x120x5mm, 140x140x8mm,

Flower Type and Square Type

Galvanized or as Nature
ALL THE PARTS ABOVE CAN BE OEN SIZE AND DESIGN
Adjustable Steel Shoring Prop Scaffolding Acrow Jack Props
Adjustable Steel Shoring Prop Scaffolding Acrow Jack Props

Packaging & Shipping

The packing of this item can be bags as well as pallets.

That depend on the different demand of the clients.

Adjustable Steel Shoring Prop Scaffolding Acrow Jack Props



Adjustable Steel Shoring Prop Scaffolding Acrow Jack Props

Related Products

Formwork Tie Rod System, the main parts include the Tie Rod, Tie Bar, Z Bar, Tie
Nut, Wing Nut, Flange Nut, Water Barrier, Water Stop, Hex Nut and etc.

Adjustable Steel Shoring Prop Scaffolding Acrow Jack Props

Hollow Plastic Formwork, which is made of PP, is designed to replace the traditional
Plywood. The advantages are:

1. REUSE 80-100 time, no oil needed

2. 100% Waterproof

3. Can easily cut, nail and screw

4. Save at least 30% total cost



Adjustable Steel Shoring Prop Scaffolding Acrow Jack Props
