Basic Info.
Supporting Mode
Floor Type Scaffolding
Lapping Form
Full Scaffolding
Erection Position
External Scaffolding
Move Method
Scaffolding Frame
Scaffolding Part Type
Scaffolding Frames
Construction Properties
Building Scaffold
Certificate
ISO9001
Finished
Galvanized
Function
Shoring/Formwork
Usage
Building Material
Transport Package
Normal Package
Specification
5.3kg
Trademark
OEM/ODM
Origin
China
HS Code
7308400000
Production Capacity
20 Ton / Month
Product Description
Scaffolding construction prop formwork building material scaffold screw jack
Engineered for versatility and durability, the Ring Frame is ideal for structures with complex shapes, plans and heights. Whether as a scaffold or a shoring system, it is the perfect choice when angular flexibility is essential.
Unlimited possibilities

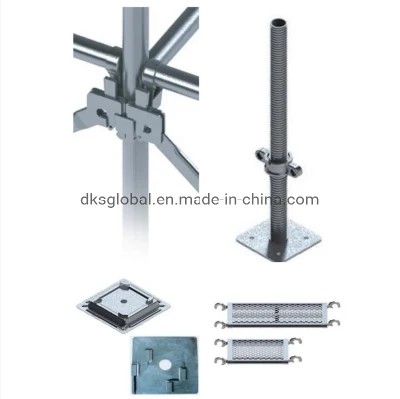

At the core of the Ring Frame System is the rosette design. This unique plate has eight apertures that can link up to eight horizontal and diagonal to each rosette. In other words, the Ring Frame System offers virtually unlimited angular fitting and design, making it the perfect scaffold for triangular, polygonal and curved structures.
Manufactured to last
All Ring Frame System components are galvanized and therefore offer excellent anti-corrosion resistance. This protection reduces maintenance costs, extends lifespan and therefore enables longer utilization.
A strong and safe connection system
The Ring Frame system uses a wedge shaped system to ensure a safe and reliable connection(e.g. cannot be accidentally dislodged) between standards, ledgers and diagonal braces.
A comprehensive range
As a versatile manufacturer and inventor of modular scaffolding systems, DKS also provides a complete range of components such as e.g. panels, crowns and supports.
Dimensions
13.Base-Jacks
ISO Certificate
USA SAIA Member Certificate
Factory
Located in Guangdong, the factory cover an area of 16,528 M2 and is specialized in the production of shoring and safety systems.
The factory is also equiped with modern and high-performance production tools and is ISO 9001 certified.
Products including shoring system, scaffolding system, formwork system, and other components for construction site.
And products are exported to Japan, the United States, Canada, Germany, Spain and many other countries.
Engineered for versatility and durability, the Ring Frame is ideal for structures with complex shapes, plans and heights. Whether as a scaffold or a shoring system, it is the perfect choice when angular flexibility is essential.
Unlimited possibilities
At the core of the Ring Frame System is the rosette design. This unique plate has eight apertures that can link up to eight horizontal and diagonal to each rosette. In other words, the Ring Frame System offers virtually unlimited angular fitting and design, making it the perfect scaffold for triangular, polygonal and curved structures.
Manufactured to last
All Ring Frame System components are galvanized and therefore offer excellent anti-corrosion resistance. This protection reduces maintenance costs, extends lifespan and therefore enables longer utilization.
A strong and safe connection system
The Ring Frame system uses a wedge shaped system to ensure a safe and reliable connection(e.g. cannot be accidentally dislodged) between standards, ledgers and diagonal braces.
A comprehensive range
As a versatile manufacturer and inventor of modular scaffolding systems, DKS also provides a complete range of components such as e.g. panels, crowns and supports.
Dimensions
- Standards
| Code | Description | Tube size & Weight | Tube size & Weight | |
| DRF-S-3000 | 118.1 in | RF Standard 3000mm | 1.9(in)x3.2t & 29.5lb 13.37kg | 2.4(in)x3.2t & 35.7lb 16.2kg |
| DRF-S-2500 | 98.4 in | RF Standard 2500mm | 1.9(in)x3.2t & 24.6lb 11.14kg | 2.4(in)x3.2t & 29.8lb 13.5kg |
| DRF-S-2000 | 78.7 in | RF Standard 2000mm | 1.9(in)x3.2t & 19.7lb 8.92kg | 2.4(in)x3.2t & 23.8lb 10.8kg |
| DRF-S-1500 | 59.1 in | RF Standard 1500mm | 1.9(in)x3.2t & 14.7lb 6.69kg | 2.4(in)x3.2t & 17.9lb 8.1kg |
| DRF-S-1000 | 39.4 in | RF Standard 1000mm | 1.9(in)x3.2t & 9.8lb 4.46kg | 2.4(in)x3.2t & 11.9lb 5.4kg |
| DRF-S-500 | 19.7 in | RF Standard 500mm | 1.9(in)x3.2t & 4.9lb 2.23kg | 2.4(in)x3.2t & 1.0lb 2.7kg |
- Ledgers
| Code | Description | Weight | ||
| DRF-L-2440 | 96.1 in | RF Ledgers 2440mm | 20.9 lb | 9.50 kg |
| DRF-L-1830 | 72.0 in | RF Ledgers 1830mm | 15.4 lb | 7.00 kg |
| DRF-L-1220 | 48.0 in | RF Ledgers 1220mm | 11.01 lb | 5.00 kg |
| DRF-L-900 | 35.4 in | RF Ledgers 900mm | 8.8 lb | 4.00 kg |
| DRF-L-600 | 23.6 in | RF Ledgers 600mm | 7.0 lb | 3.20 kg |
| DRF-L-300 | 11.8 in | RF Ledgers 300mm | 4.4 lb | 2.00 kg |
- Frames
| Code | Description | Tube size & Weight | Tube size & Weight | |
| DRF-F-2000 | 78.7 in | RF Frames 3000m | 1.9(in)x3.2t 52.6lb 23.88kg | 2.4(in)x3.2t 60.9lb 27.64kg |
| DRF-F-1500 | 59.1 in | RF Frames 1500m | 1.9(in)x3.2t 42.8lb 19.42kg | 2.4(in)x3.2t 49.0lb 22.24kg |
| DRF-F-1000 | 39.4 in | RF Frames 1000m | 1.9(in)x3.2t 33.0lb 14.96kg | 2.4(in)x3.2t 37.0lb 16.78kg |
- Braces
| Code | Description | Weight | |
| DRF-XB-1679 | RF Braces 1679mm | 9.2 lb | 4.20 kg |
| DRF-XB-1952 | RF Braces 1952mm | 10.5 lb | 4.80 kg |
| DRF-XB-2554 | RF Braces 2554mm | 14.1 lb | 6.40 kg |
- Spigot
| Code | Description | Weight | |
| DRF-KSET | Brace Collar | 11.4 lb | 5.20 kg |
| DRF-KSET500 | RF Spigot 500mm | 20.9 lb | 9.50 kg |
- Boards
| Code | Description | Weight | ||
| DRF-B-2440 | 96.1 in | RF Boards 2440mm | 36.4 lb | 16.50kg |
| DRF-B-1830 | 72.0 in | RF Boards 1830mm | 27.6 lb | 12.50kg |
- Hop Up Brackets
| Code | Description | Weight | ||
| DRF-HU-600 | 23.6 in | RF Hop Up Brackets 600mm | 36.4 lb | 16.50 kg |
| DRF-HU-300 | 11.8 in | RF Hop Up Brackets 300mm | 27.6 lb | 12.50 kg |
- Braces
| Code | Description | Weight | ||
| DRF-B-2000 | 78.7in x 34.5in | RF Braces 2000mm x 900mm | 21.0 lb | 9.50 kg |
| DRF-B-2000 | 78.7in x 72.05in | RF Braces 2000mm x 1830mm | 25.0lb | 11.34 kg |
| DRF-B-2000 | 59.1in x35.4in | RF Braces 1500mm x 900mm | 18.5 lb | 8.40 kg |
- Crown
| Code | Description | Weight | |
| DRF-KSFC | RF Crown | 2.4 lb | 1.10kg |
- Mega Panel (material: AL6082-T6)
| Code | Description | Weight | ||
| DRF-MP-1809 | 70.9 X 35.4in | 1800 x 900mm | 87.5 lb | 39.7kg |
| DRF-MP-1806 | 70.9 X 23.6in | 1800 x 600mm | 57.3 lb | 36.0kg |
| DRF-MP-1803 | 70.9 X 11.8in | 1800 x 300mm | 38.4 lb | 17.4kg |
| DRF-MP-1209 | 70.9 X 35.4in | 1800 x 900mm | 56.7 lb | 25.7kg |
| DRF-MP-1806 | 70.9 X 23.6in | 1800 x 600mm | 42.3 lb | 19.2kg |
- Light Panel (material: AL6061-T6)
| Code | Description | Weight | ||
| DRF-LP-1809 | 70.9 X 35.4in | 1800 x 900mm | 55.6 lb | 25.2kg |
| DRF-LP-1806 | 70.9 X 23.6in | 1800 x 600mm | 41.1 lb | 18.64kg |
| DRF-LP-1803 | 70.9 X 11.8in | 1800 x 300mm | 28.1 lb | 12.76kg |
| DRF-LP-1809 | 70.9 X 35.4in | 1800 x 900mm | 30.9 lb | 14.0kg |
| DRF-LP-1806 | 70.9 X 23.6in | 1800 x 600mm | 23.1 lb | 10.48kg |
| DRF-LP-1803 | 70.9 X 11.8in | 1800 x 300mm | 15.2 lb | 6.91kg |
- U - Jacks
| Code | Description | Weight | |
| DRF-KSUJ | RF-U -JACKS | 11.8 lb | 5.35kg |

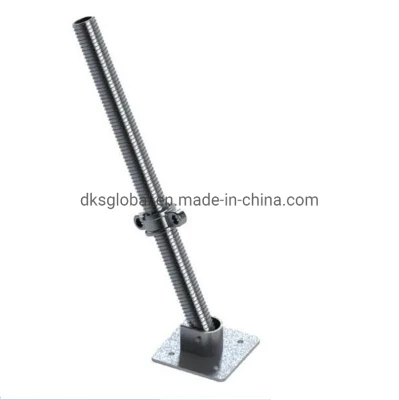

13.Base-Jacks
| Code | Description | Weight | |
| DRF-KSBJ | RF-BASE-JACK | 9.37lb | 4.25kg |
ISO Certificate
USA SAIA Member Certificate
Factory
Located in Guangdong, the factory cover an area of 16,528 M2 and is specialized in the production of shoring and safety systems.
The factory is also equiped with modern and high-performance production tools and is ISO 9001 certified.
Products including shoring system, scaffolding system, formwork system, and other components for construction site.
And products are exported to Japan, the United States, Canada, Germany, Spain and many other countries.
