Basic Info.
Packaging & Delivery
Product Description
| Model No. | GYT 48-60 | Customization | Available |
| Surface Treatment | Galvanized, Powder Coated, Painted | Usage | Building, Industrial |
| Specification | 48-60mm | Erection Position | External Scaffolding |
| Adjustable Length | 1.8-4m | MOQ | 800 |
| Diameter | 48/56/60mm | Scaffolding Part Type | Scaffolding Props |
| Color | Yellow, Red, Blue, Green | Transport Package | Bundle |
| Material Grade | Q235 | Trademark | GYT |
| Prop Type | Cup Nut, Cast Nut | HS Code | 7308400000 |

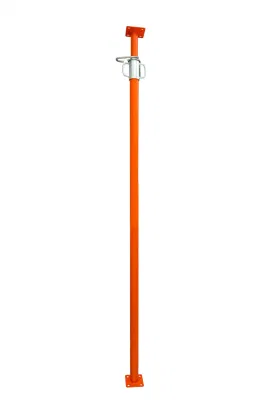

GYT Adjustable scaffold acrow painted building halloween shoring Jack scaffolding steel prop

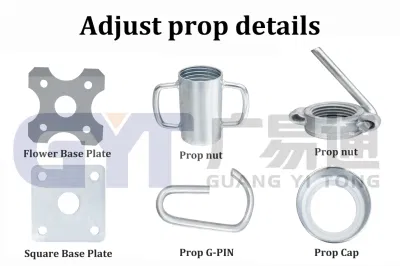

(1) The steel prop is mainly composed of inner pipe, outer pipe, pillar nut, jack roof and bottom plate. Its structure is simple and flexible.
(2) Easy steel disassembly; it can be adjusted to any length within its range.
(3) steel prop is used for internal concrete plate support, more stable and reliable.
(4) steel props have long life and reusable. Materials can be recycled even if they are no longer working. The steel props are connected by CO2 arc welding, which has good crack resistance and deformation resistance
(5) The steel props can be adjusted according to the different heights of the building. steel prop, scaffolding steel prop, steel prop for construction, adjustable steel prop, steel support scaffolding, adjustable steel prop, steel support scaffolding, formwork steel props.
Application scenarios: 1. New construction, renovation and decoration of buildings. 2. Aviation and railway. 3. Support all kinds of formwork, flat plates, beams and walls.4. Buildings of different heights shall serve as temporary support, or villa projects.
Compared with other formwork support systems, steel support is the most economical and convenient construction method, with a wide range of application. Extensive flexible design and production, steel props can be customized for different diameters, thickness, adjustable lengths, etc. steel props can replace tubular scaffolding system, cup lock scaffolding system and wooden support.
| Middle East Type Prop | ||||
| Adjustable Length | Prop weight | Inner Tube Diameter | Outer Tube Diameter | Tube Thickness |
| 1.8-3.2m | 12kg | 48mm | 60mm | 2.0mm(in general); 2.5mm (can be optional) |
| 2.0-3.5m | ||||
| 2.2-4.0m | ||||
| Spanish Type Prop | ||||
| Adjustable Length | Prop weight | Inner Tube Diameter | Outer Tube Diameter | Tube Thickness |
| 1.8-3.2m | 12kg | 48mm | 56mm | 2.0mm(in general); 2.5mm (can be optional) |
| 2.0-3.5m | ||||
| 2.2-4.0m | ||||
| Plate Type | Thickness | Size | Full name | |

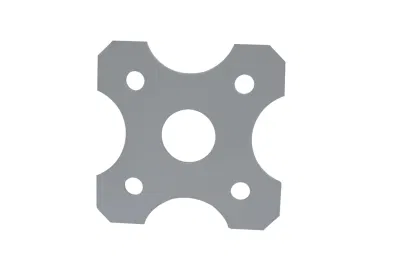

| Flower | 4mm | 120mm*120mm | Flower Base Plate | |

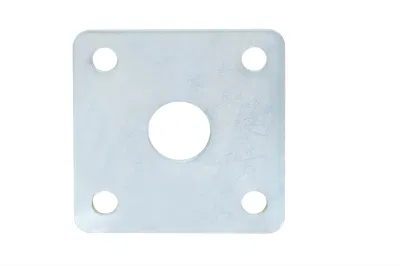

| Square | 4mm | 120mm*120mm | Square Base Plate | |
In order to better protect the safety of your goods, we will provide bundle-based professional, environmentally friendly, convenient and efficient packaging services.
Guangyitong (Fujian) Heavy Industry Machinery Co., Ltd is located in Changle District, Fuzhou, China. Changle to city as the axis, relying on the "two port" (airport, port), the construction of two lines (navigation get line, jade line), the development of "three line" (gorge get a line, north line, two port line), the development of "three" (city area, jin get economic area, songjiang economic area), forming three development pattern, radiation drive the coordinated development of the city, is built into minjiang estuary economic prosperity zone important area of strategic layout. Guangyitong factory is based on such natural advantage region, factory strength, is a collection of design, production, sales, leasing for the integration of comprehensive joint-stock enterprise, the company covers an area of nearly 20000 square meters, body workshop covers an area of over 10000 square meters, and only 6.7 km from the airport, drive 20 minutes to arrive, transportation is convenient, shuttle and visit the factory is very convenient.
The main metal products produced by our company include steel props, scaffolding, steel plank , LvL plank , plywood,Base jack, scaffolding coupler, formwork accessories, galvanized pipe ,H20 beam,ground screw, solar stand, C / Z /H section steel , other building material etc.
As a professional adjust props and construction elevators manufacturer with more than ten years, we have won a wide reputation with stable quality, high cost performance, practicability and excellent after-sales service, and have become a high quality supplier of many well-known construction companies in China. For example, China Railway Group Group, Jiangxi Construction Engineering Group, Hunan Construction Engineering Group, Fujian Fifth Construction Engineering Group, China Metallurgical Group, China Railway Urban Construction Group, Fujian Construction Engineering Group, China Construction Group, Poly Group, and well-known builders and leasing companies in America, South Asia, Europe, Oceania, the Middle East and other regions. In the new journey, the enterprise will build high-quality machinery, create enterprise brand as the business goal, to create high-quality machinery production line. We look forward to working with you to create new opportunities.
How to buy your ideal products?
You can provide us your drawing, and we will produce as your drawing.
Or we can design as your requirements if you do not have a clear plan.
How to pay?
TT ,L/C and WEST UNION are acceptable .
What is the delivery time?
It depends on order quantity.
Generally, the delivery time will be within 15 to 30 days.
How about our product quality?
Our steel prop piles are manufactured with first quality materials
What is steel quality?
This system is built from Q235 steel conical pipe with welded blades,
and can be applied in a wide variety of different geological locations.
How to order from GYT?
Buyer Send Enquiry →Get Zhiyi Quotation → Order Confirmation
→ Buyer Arrange 30% Deposit → Production Started upon Receipt of Deposit
