China Factory Steel Scaffold Formwork Walk Through Ladder Frame Scaffolding for Construction Building Material

China Factory offers steel scaffold formwork walk through ladder frame scaffolding for construction building material. Buy direct from the manufacturer.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
HY-FS-001
Supporting Mode
Floor Type Scaffolding
Lapping Form
Full Scaffolding
Erection Position
External Scaffolding
Move Method
Attached Lifting Scaffolding
Scaffolding Part Type
Scaffolding Frames
Construction Properties
Building Scaffold
Steel Grade
Q235/Q195/Q355
Surface Treatment
Electro Galv./Hot DIP Galv./Powder Coated
Pattern
H Frame/Main Frame
ISO
9001
Packages
by Bundle
Transport Package
Steel Pallet
Specification
42/48/60mm OD
Trademark
HUAYOU
Origin
China
HS Code
7308400000
Production Capacity
30000 PCS/Year

Product Description

FIRST. COMPANY PROFILE



Tianjin Huayou Scaffolding Co., Ltd is a company specialized in producing and selling of scaffolding products and other related building materials. Company located in Tianjin City, which is the largest manufacturing base of steel and scaffolding products. Furthermore, there is the largest sea port in China north area and easier to transport cargos all over the world.With years work, Huayou has made a complete product system and served materials to the different areas of the world like SouthEast Asia Market, MiddleEast Market; North & South America Market; Austrilia Market; Eroupe Market etc, we warmly welcome your inquiry.

SECOND. PRODUCTS SPECIFICATION

1. Scaffolding Frame Specification-South Asia Type
Name Size mm  Main Tube mm  Other Tube mm steel grade surface treatment package
Main Frame  1219x1930 42x2.4/2.2/1.8/1.6/1.4 25/21x1.0/1.2/1.5 Q195-Q235 Pre-Galv./Painted steel strap
1219x1700 42x2.4/2.2/1.8/1.6/1.4 25/21x1.0/1.2/1.5 Q195-Q235 Pre-Galv./Painted steel strap
1219x1524 42x2.4/2.2/1.8/1.6/1.4 25/21x1.0/1.2/1.5 Q195-Q235 Pre-Galv./Painted steel strap
914x1700 42x2.4/2.2/1.8/1.6/1.4 25/21x1.0/1.2/1.5 Q195-Q235 Pre-Galv./Painted steel strap
H Frame 1219x1930 42x2.4/2.2/1.8/1.6/1.4 25/21x1.0/1.2/1.5 Q195-Q235 Pre-Galv./Painted steel strap
1219x1700 42x2.4/2.2/1.8/1.6/1.4 25/21x1.0/1.2/1.5 Q195-Q235 Pre-Galv./Painted steel strap
1219x1219 42x2.4/2.2/1.8/1.6/1.4 25/21x1.0/1.2/1.5 Q195-Q235 Pre-Galv./Painted steel strap
1219x914 42x2.4/2.2/1.8/1.6/1.4 25/21x1.0/1.2/1.5 Q195-Q235 Pre-Galv./Painted steel strap
Horizontal/Walking Frame 1050x1829 33x2.0/1.8/1.6 25x1.5 Q195-Q235 Pre-Galv./Painted steel strap
Cross Brace 1829x1219x2198 21x1.0/1.1/1.2/1.4   Q195-Q235 Pre-Galv./Painted steel strap
1829x914x2045 21x1.0/1.1/1.2/1.4   Q195-Q235 Pre-Galv./Painted steel strap
1928x610x1928 21x1.0/1.1/1.2/1.4   Q195-Q235 Pre-Galv./Painted steel strap
1219x1219x1724 21x1.0/1.1/1.2/1.4   Q195-Q235 Pre-Galv./Painted steel strap
1219x610x1363 21x1.0/1.1/1.2/1.4   Q195-Q235 Pre-Galv./Painted steel strap

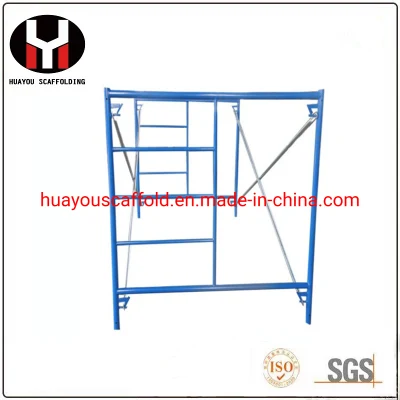

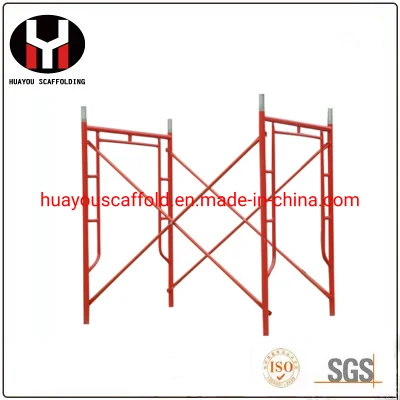

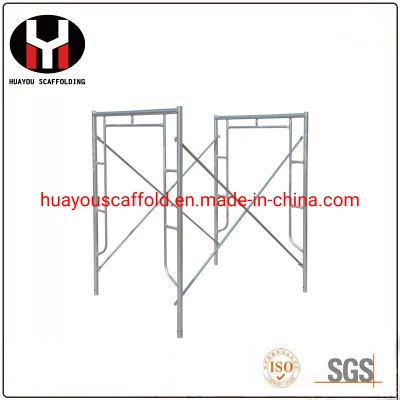

2.  Walk Thru Frame  -American Type
Name Tube and Thickness Type Lock steel grade Weight kg Weight Lbs
6'4"H x 3'W - Walk Thru Frame  OD 1.69" thickness 0.098" Drop Lock Q235 18.60 41.00
6'4"H x 42"W - Walk Thru Frame OD 1.69" thickness 0.098" Drop Lock Q235 19.30 42.50
6'4"H X 5'W -  Walk Thru Frame OD 1.69" thickness 0.098" Drop Lock Q235 21.35 47.00
6'4"H x 3'W - Walk Thru Frame  OD 1.69" thickness 0.098" Drop Lock Q235 18.15 40.00
6'4"H x 42"W - Walk Thru Frame OD 1.69" thickness 0.098" Drop Lock Q235 19.00 42.00
6'4"H X 5'W -  Walk Thru Frame OD 1.69" thickness 0.098" Drop Lock Q235 21.00 46.00

3. Mason Frame-American Type
Name Tube Size Type Lock Steel Grade Weight Kg Weight Lbs
3'H X 5'W -  Mason frame OD 1.69" thickness 0.098" Drop Lock Q235 12.25 27.00
4'H X 5'W -  Mason frame OD 1.69" thickness 0.098" Drop Lock Q235 15.00 33.00
5'H X 5'W -  Mason frame OD 1.69" thickness 0.098" Drop Lock Q235 16.80 37.00
6'4''H X 5'W -  Mason frame OD 1.69" thickness 0.098" Drop Lock Q235 20.40 45.00
3'H X 5'W -  Mason frame OD 1.69" thickness 0.098" C-Lock Q235 12.25 27.00
4'H X 5'W -  Mason frame OD 1.69" thickness 0.098" C-Lock Q235 15.45 34.00
5'H X 5'W -  Mason frame OD 1.69" thickness 0.098" C-Lock Q235 16.80 37.00
6'4''H X 5'W -  Mason frame OD 1.69" thickness 0.098" C-Lock Q235 19.50 43.00

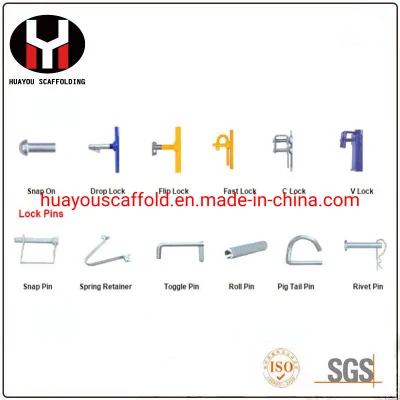

4. Snap On Lock Frame-American Type
Dia width Height
1.625'' 3'(914.4mm)/5'(1524mm) 4'(1219.2mm)/20''(508mm)/40''(1016mm)
1.625'' 5' 4'(1219.2mm)/5'(1524mm)/6'8''(2032mm)/20''(508mm)/40''(1016mm)

5.Flip Lock Frame-American Type
Dia Width Height
1.625'' 3'(914.4mm) 5'1''(1549.4mm)/6'7''(2006.6mm)
1.625'' 5'(1524mm) 2'1''(635mm)/3'1''(939.8mm)/4'1''(1244.6mm)/5'1''(1549.4mm)

6. Fast Lock Frame-American Type
Dia Width Height
1.625'' 3'(914.4mm) 6'7''(2006.6mm)
1.625'' 5'(1524mm) 3'1''(939.8mm)/4'1''(1244.6mm)/5'1''(1549.4mm)/6'7''(2006.6mm)
1.625'' 42''(1066.8mm) 6'7''(2006.6mm)

7. Vanguard Lock Frame-American Type
Dia Width Height
1.69'' 3'(914.4mm) 5'(1524mm)/6'4''(1930.4mm)
1.69'' 42''(1066.8mm) 6'4''(1930.4mm)
1.69'' 5'(1524mm) 3'(914.4mm)/4'(1219.2mm)/5'(1524mm)/6'4''(1930.4mm)

8. Cross Brace and Guard Rail-American Type
Name Tube Size Steel Grade Weight Kg Weight Lbs Finish
7' x 4'  Cross Brace Punch Hole Dia. 1"x0.071" Thickness Q235/Q195 5.56 12.25 Pre-Galv.
7' x 3'  Cross Brace Punch Hole Dia. 1"x0.071" Thickness Q235/Q195 5.33 11.75 Pre-Galv.
7' x 2'  Cross Brace Punch Hole Dia. 1"x0.071" Thickness Q235/Q195 5.11 11.25 Pre-Galv.
6' x 4'  Cross Brace Punch Hole Dia. 1"x0.071" Thickness Q235/Q195 5.40 11.90 Pre-Galv.
10' Guard Rail Punch Hole Dia-1'-1/4'' Q235/Q195 3.62 7.97 Pre-Galv.
8' Guard Rail Punch Hole Dia-1'-1/4'' Q235/Q195 2.91 6.4 Pre-Galv.
7' Guard Rail Punch Hole Dia-1'-1/4'' Q235/Q195 2.54 5.60 Pre-Galv.
6' Guard Rail Punch Hole Dia-1'-1/4'' Q235/Q195 2.20 4.85 Pre-Galv.
5' Guard Rail Punch Hole Dia-1'-1/4'' Q235/Q195 1.84 4.05 Pre-Galv.
4' Guard Rail Punch Hole Dia-1'-1/4'' Q235/Q195 1.50 3.30 Pre-Galv.
3' Guard Rail Punch Hole Dia-1'-1/4'' Q235/Q195 1.14 2.50 Pre-Galv.
2' Guard Rail Punch Hole Dia-1'-1/4'' Q235/Q195 0.79 1.75 Pre-Galv.


THIRD. Production Proceedure

1. Pure Q235 raw materials Purchasing
2. Auto matic machine to cut, and Punching
3. mature working staff to weld,sanding, inspect and pack them

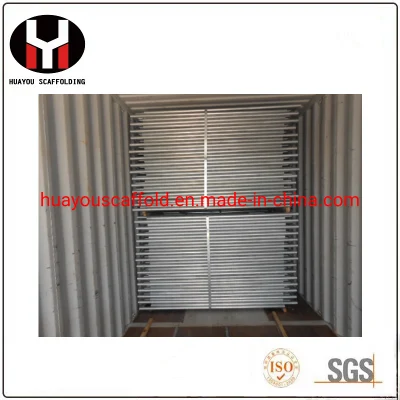

FORTH. Packing and Loading

All our Scaffolding Frame are for overseas markets. Especially USA, Europa and Asia markets. Most of our customers are mainly owned projects and construction, which require high level quality. Now, for package, we can give you best one, wooden pallet and steel pallet. Professional service can make sure all your goods well and be more safe.

China Factory Steel Scaffold Formwork Walk Through Ladder Frame Scaffolding for Construction Building Material



CERTIFICAT:
China Factory Steel Scaffold Formwork Walk Through Ladder Frame Scaffolding for Construction Building Material FAQ:

Q1: Where is the loading port?

A: Tianjin Xin port

Q2: What's the MOQ of the product?
A: Different item has different MOQ, can be negotiated.

Q3: What certificates do you have?
A: We have ISO 9001, SGS etc.

Q4: Can I get some samples?
A: Yes, Sample is free, but shipping cost is on your side.

Q5: How long is the production cycle after ordering?
A: Generally need around 20-30 days.

Q6: What is the payment methods?
A: T/T or 100% irrevocable LC at sight, can be negotiated.

We Provide one-stop station purchasing for all scaffolding products.
